120TPD Grain / Beans Cleaning Line in the U.S

　　120Ton /Day Grain / Beans Cleaning Line

　　1. Grain / Beans Cleaning Line Design:

　　Grain / Beans Cleaning Line is an automatic processing line integrated with cleaning, destoning, selecting, brushing, grading, color sorting and winnowing processes.

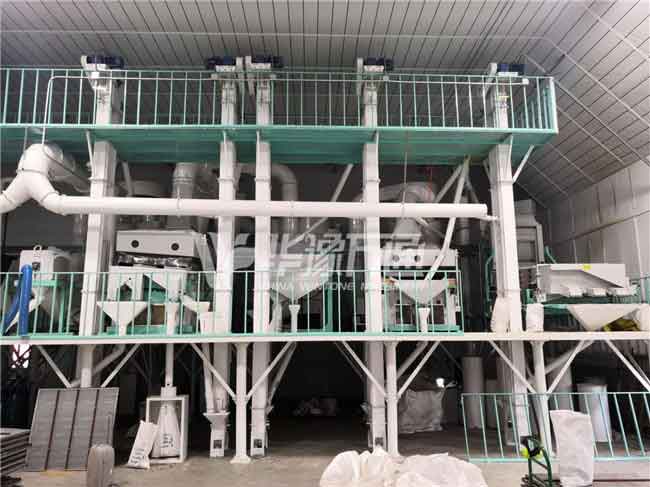

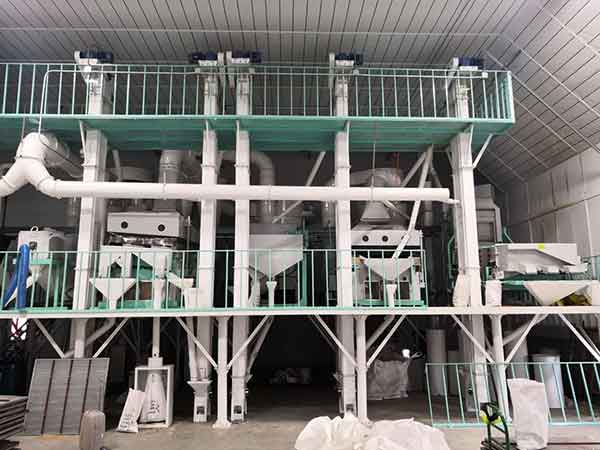

　　The line is in double layer steel structure with equipments arrangement. It uses electric centralized control system, up to continuous automatic operation.

　　2. Grain / Beans Cleaning Line with fine cleaning efficiency:

　　This Project can process beans and other seeds efficiently. Compared with preliminary cleaning plant, it can help us get fine bean products. We offer completa beans cleaning line to maximize performance and flexibility to suit your bean cleaning needs. All of our cleaners are precision cleaners with good sealing property and reliable performance.

　　3. Grain / Beans Cleaning Line Technology and Features:

　　The line includes one round of magnetic separation, two rounds of cleaning and destoning. Materials is conveyed by elevators and two groups of aspiration systems are used to dedust. It includes two rounds of sifting to remove big and small impurities in the raw bean. Then the destoner fully removes the stones. The magnetic separator increases purity of the finished products to guarantee good taste by removing metal impurities so as to prevent them going into the final beans.

　　4. Grain / Beans Cleaning Line Features and Processing Technology:

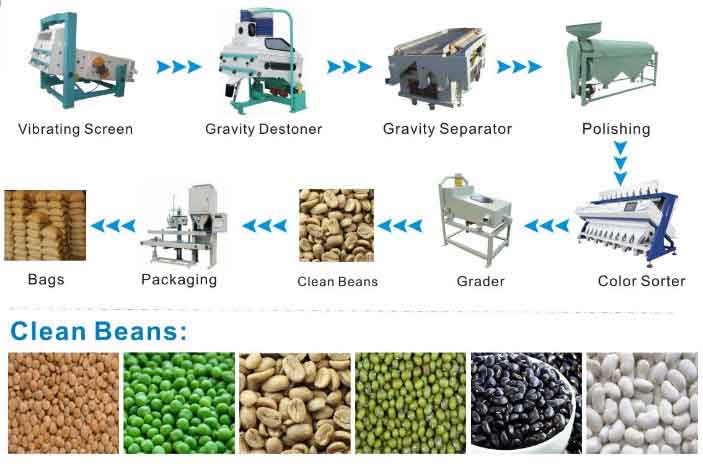

　　One round of selection and two round of brushing ensures the quality of lustrous beans,with features of high yield, low broken rate and uniform granules.After color sorting, the beans up to national standard can be packaged. One round of selection process removes impurities in the bean; two rounds of polishing processes dedust the materials to increase lustrousness;the vibration sifter grades out broken beans in the finished products while the complete fine beans are conveyed to color sorter.The sorted kernels are selected again and then are conveyed to packaging cabinet.

　　5. Ventilation and pneumatic conveying of the bean cleaning machine

　　The project includes multiple groups of aspiration systems, meeting requirements for environment protection and reducing dust concentration. It also decreases noise in the workshop, guaranteeing secure and clean operation.

　　6. Power control of the bean cleaning machine

　　It is equipped with overvoltage, undervoltage and electrical shock protection systems, making sure secure power supply.

　　7. Bean cleaning machine products and yield:

　　Finished product: fine bean(depending on impurities in the raw bean)

　　Fine bean: 90-96%

　　Broken kernel: 2-3%

　　Impurity: 2-7%

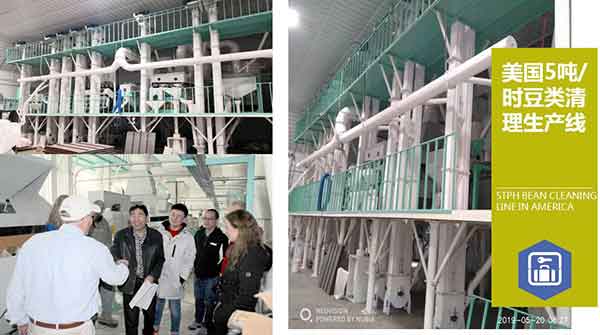

　　Our 5T/H beans and other seeds cleaning line has been exported to the U.S.:

　　This is a modern seed cleaning and sorting line designed by Win Tone that brings artificial intelligence and internet connectivity to local agri-business of N.Y.State. This line can maximize product purity while handling with the utmost care for your various seeds, such as wheat, barley, soybeans, kidney beans, black beans, peas, vegetable seeds, buckwheat, etc.

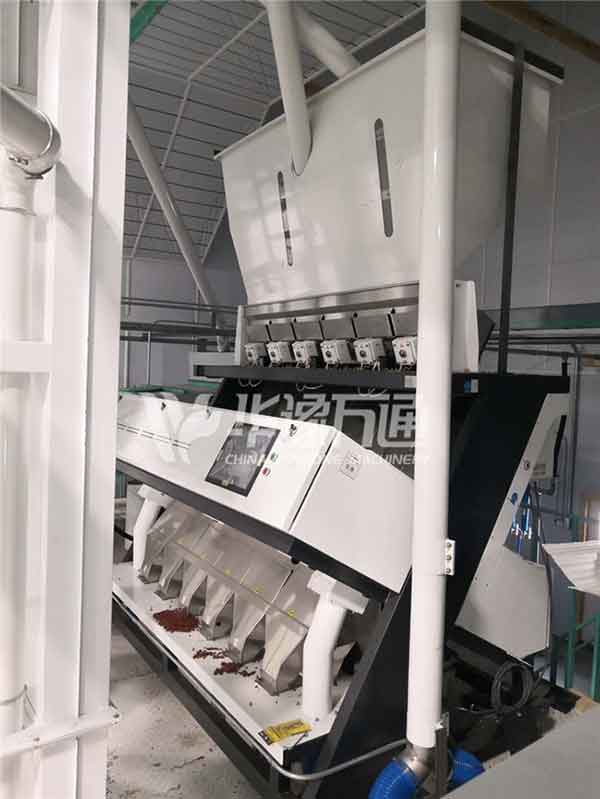

　　United with this in the holistically designed facility is the optical color seed sorting machine which uses artificial intelligence to do a visual analysis of every seed of any type orsize, even down to mustard seeds. It also sorts out diseased seeds, greatly decreasing the spread of plant pathogens.

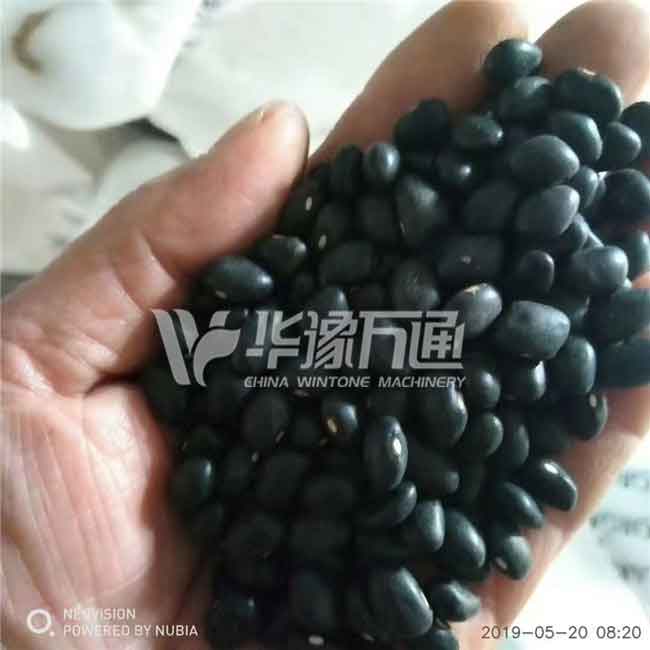

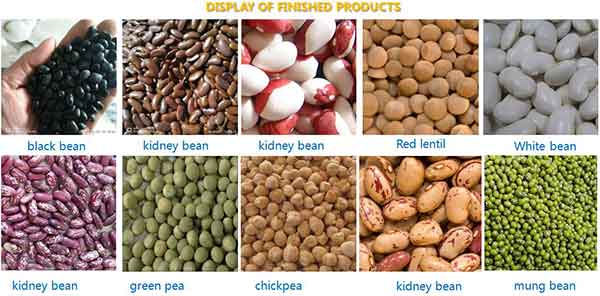

　　Pictures of processed seeds:

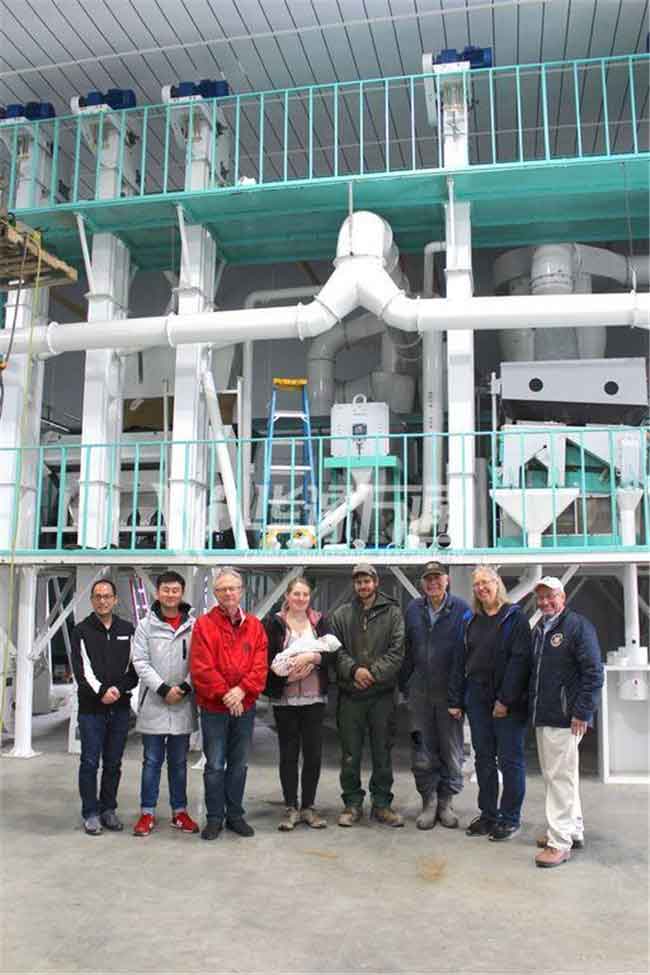

　　Our client Klaas evaluates the project like this:

　　Your machines are strongly built. The motors and gear reductions are very heavy. They are built stronger than American made electric motors. When our cleaning line is completed, we are interested in getting a price for a dedusting system to install in our animal feed mill.
